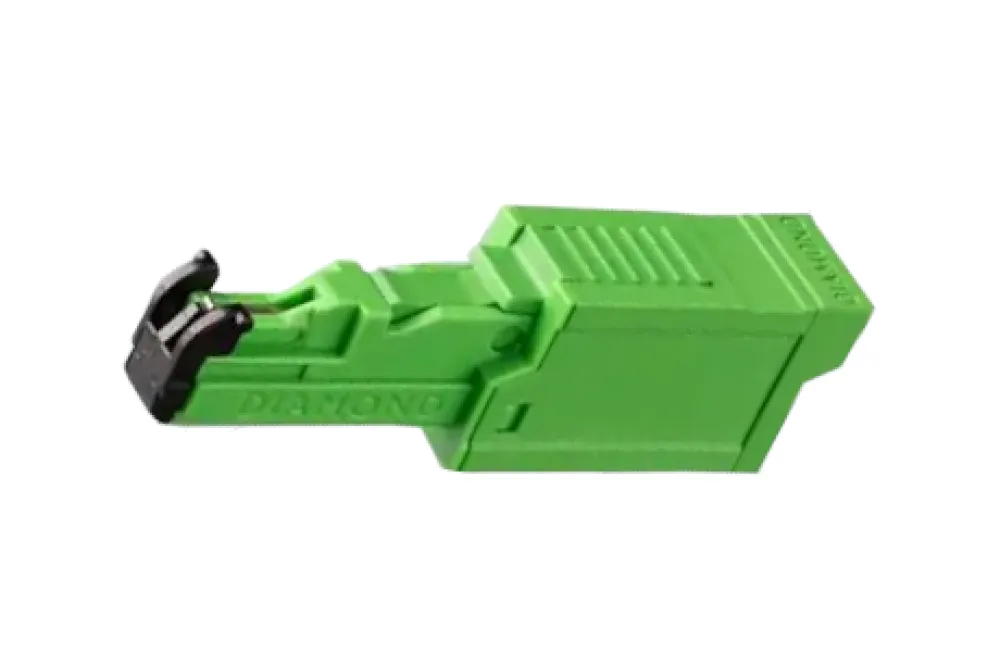

E2000 APC Attenuator

The Diamond E2000 APC Attenuator precisely reduces optical power in singlemode fibers to prevent overloading or to optimally adjust signal levels. Ideal for telecommunications networks, test setups, and laboratories.

Features

• Connector Type: E2000 APC, Singlemode 9/125 µm
• Attenuation Values: 1, 3, 6, 10 und 12 dB (±10 %)
• Return Loss: >65 dB
• Maximum Optical Input Power: +20 dBm
• Wavelength Range: 1260–1360 nm & 1460–1580 nm
• Operating Temperature: –25 °C to +70 °C
• Lifespan: approx. 1,000 mating cycles

Benefits

• Precise signal level control
• Compatible with all E2000® APC systems
• Durable housing with laser protection shutters
• Ideal for testing, measurement, and field use
