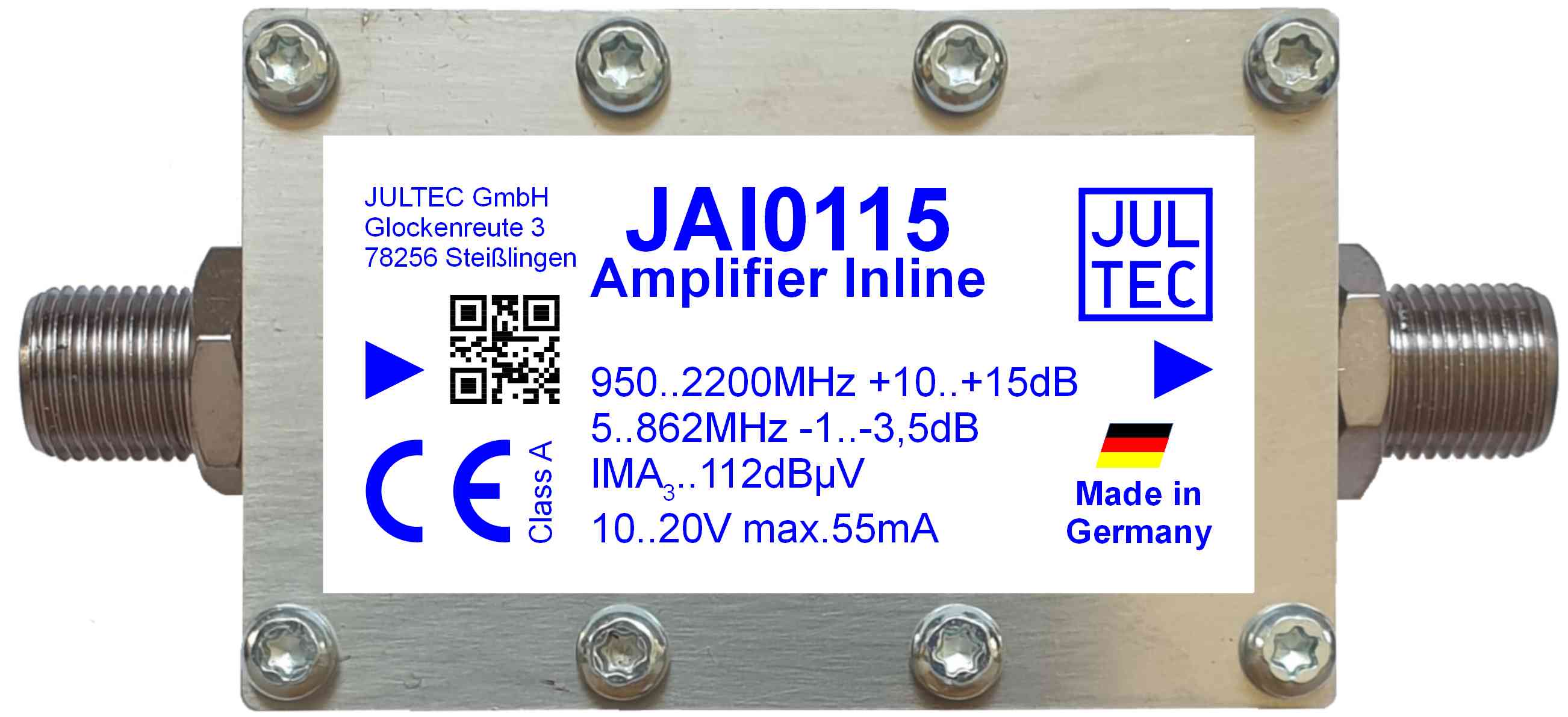

Jultec JAI0115

The Jultec JAI0115 is a high-performance inline amplifier specifically designed for the first satellite intermediate frequency (Sat-IF). With a gain of up to +15 dB in the 950–2200 MHz range, it is ideal for boosting satellite signals in subscriber lines, particularly in systems using multiswitches or Unicable solutions.

 Technical Specifications:

• Satellite IF Gain: +10 to +15 dB (950–2200 MHz)

• Terrestrial Frequency Range: 5–862 MHz, with attenuation of –1 to –3.5 dB

• Maximum Output Level: 112 dBµV (with 35 dB intermodulation attenuation)

• Remote Power Supply: 10–20 V / 55 mA

• DC Pass-Through: Max. 20 V / 500 mA

• Dimensions: 37 × 82 × 20 mm

• EMC Compliance: CE certified, Class A

 Applications:

The JAI0115 is particularly well-suited for installations where satellite signals need to be amplified in the subscriber line without affecting terrestrial signal paths. Thanks to the integrated passive path for terrestrial signals, that range remains available even when no power is supplied.

 Use Cases:

• Boosting Sat-IF signals in multiswitch or Unicable systems

• Maintaining terrestrial signal paths without power supply

• Integration in subscriber lines carrying both satellite and terrestrial signals

The Jultec JAI0115 is a reliable solution for signal amplification in complex antenna systems and works especially well in combination with other Jultec components such as multiswitches and single-cable converters. Its compact design allows for easy integration into existing setups.
