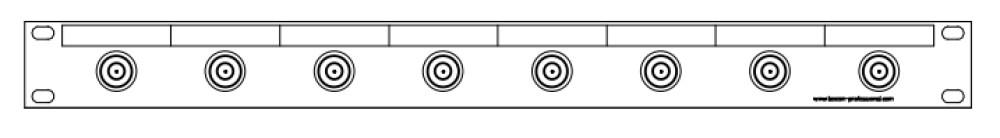

The 8-port patch panel with N-female to N-female connectors offers numerous advantages over conventional patch panels. The N-connectors are mounted in specially milled mounting holes and secured with a locknut, which prevents the connectors from twisting when cables are connected. A replaceable labeling strip allows for clear identification of the ports; labels can be easily printed using a downloadable Excel template to ensure accurate assignment. An optional rear-mountable strain relief bar is available, which provides cable strain relief and allows for neat cable bundling.
| Specification | Value |
| Color | RAL 7035 Light Grey |
| Dimensions | 483x44x40 |
| Configuration | 8 pcs. Huber Suhner 34_N-50-0-7 |
| Outer contact material | Brass |
| Inner contact material | Copper/Beryllium alloy |
| Impedance | 50 Ω |
| Interface F max | 11 GHz |
| VSWR (DC - 3 GHz) | ≥ 24.9 dB |
| VSWR (3 - 11 GHz) | ≥ 14.7 dB |
