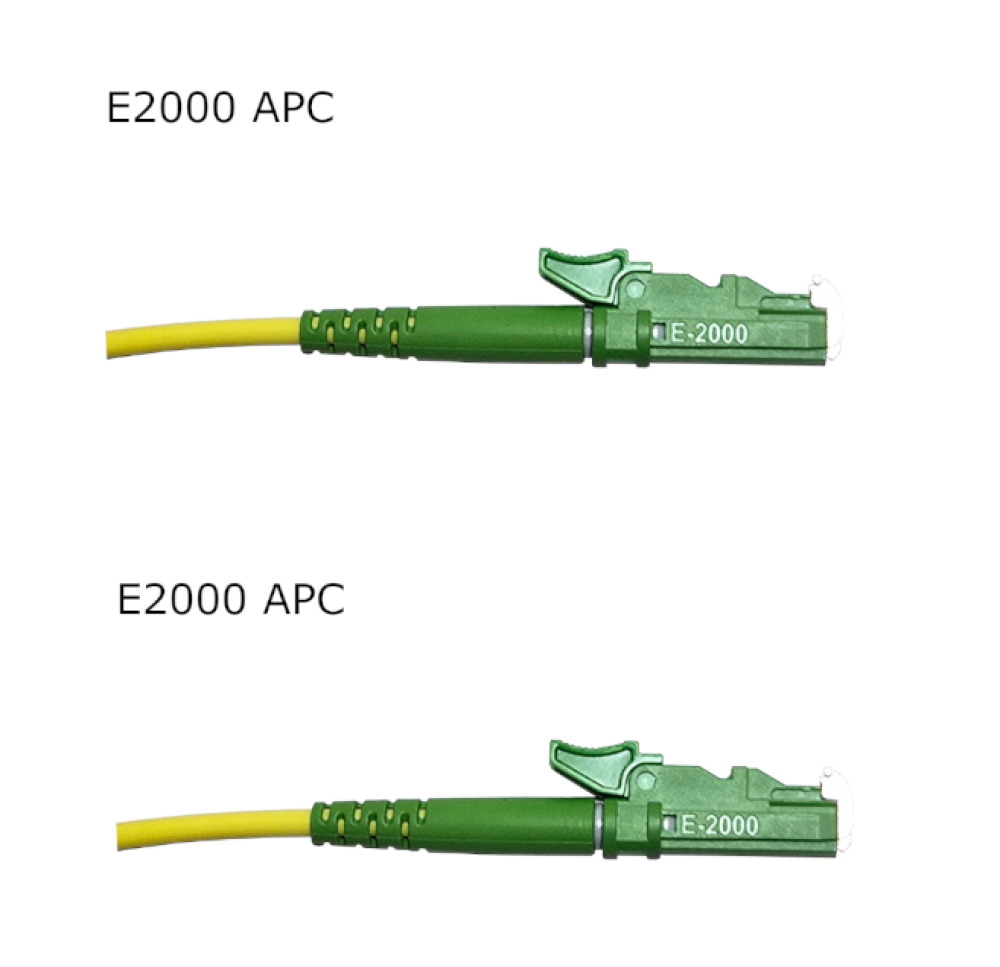

Lowloss Patchcord_Simplex_E2000-APC / E2000-APC
- Description
- Diamond E2000 APC 8° - E2000 APC 8° Grade A
- R&M E2000 APC 8° - E2000 APC 8° Grade B
- Customer reviews
High-quality Singlemode OS2 fiber optic cables and patch cords with E‑2000® APC connectors for stable, low-loss connections. Minimal insertion loss, high return loss ≥ 60 dB, flexible Ø 2 mm LSZH jacket. Ideal for telecommunications, data centers, FTTH/FTTB, laboratories, and industrial applications. Available in various lengths, individually tested for maximum reliability.
High-Performance ULL Fiber Optic Cable for Low-Loss and Precision Optical Connections
Features:
- Fiber Type: Singlemode OS2, Ultra-Low-Loss (ULL) for maximum signal quality.
- Connector Type: E‑2000® APC Grade A – extremely low insertion loss, reliable connections.
- Attenuation:
- Insertion Loss: typically ≤ 0.04 dB.
- Return Loss: ≥ 60 dB with APC polish.
- Cable Diameter: Ø 2.0 mm, flexible and durable for easy installation.
- Jacket Material: LSZH (low smoke zero halogen), safe for indoor use.
- Standards: IEC 61754-4 compliant with international optical connector standards.
Applications:
- High-precision telecommunications networks
- Data centers, backbone, and FTTH/FTTB networks
- Measurement and laboratory systems requiring maximum signal stability
- Industrial fiber optic applications
Available Lengths:
2 m, 3 m, 5 m, 10 m, 15 m, 20 m. Other lengths on request.
Benefits:
- Extremely Low Loss: Minimal insertion loss for superior signal performance.
- High Reliability: Diamond E‑2000® APC Grade A ensures stable, repeatable connections.
- Durability: Robust connectors and flexible cable for long-term use.
- Easy Handling: Quick installation, ready for immediate use.
- Color Coding: Yellow jacket for clear OS2 standard identification.
Note:
Each cable is individually tested for Ultra-Low-Loss performance to guarantee maximum reliability and stable optical connections.
High-Quality Fiber Optic Patch Cord for Reliable Connections
Features:
- Connector Type: E‑2000® Simplex APC 8° Grade B on both ends
- Fiber Type: Singlemode OS2 for stable long-distance transmission
- Attenuation:
- Insertion Loss: typically ≤ 0.3 dB
- Return Loss: ≥ 60 dB with APC polish
- Cable Diameter: Ø 2.0 mm, flexible and durable
- Jacket Material: LSZH (low smoke zero halogen), suitable for indoor use
- Standards: IEC 61754-4 compliant with international optical connector standards.
Applications:
- Telecommunication and data center networks
- FTTH (Fiber to the Home) and FTTB (Fiber to the Building)
- Industrial fiber optic applications
- Measurement and laboratory systems
Available Lengths:
2 m, 3 m, 5 m, 10 m, 15 m, 20 m. Other lengths on request.
Benefits:
- Reliable Connection: Grade B connectors ensure stable signal transmission
- Durability: Robust connectors and flexible cable for long-term use
- Easy Handling: Quick installation, ready for immediate use
- Color Coding: Yellow for easy OS2 standard identification
Note:
Each patch cord is individually tested for quality and performance to ensure a reliable and stable fiber optic connection.
