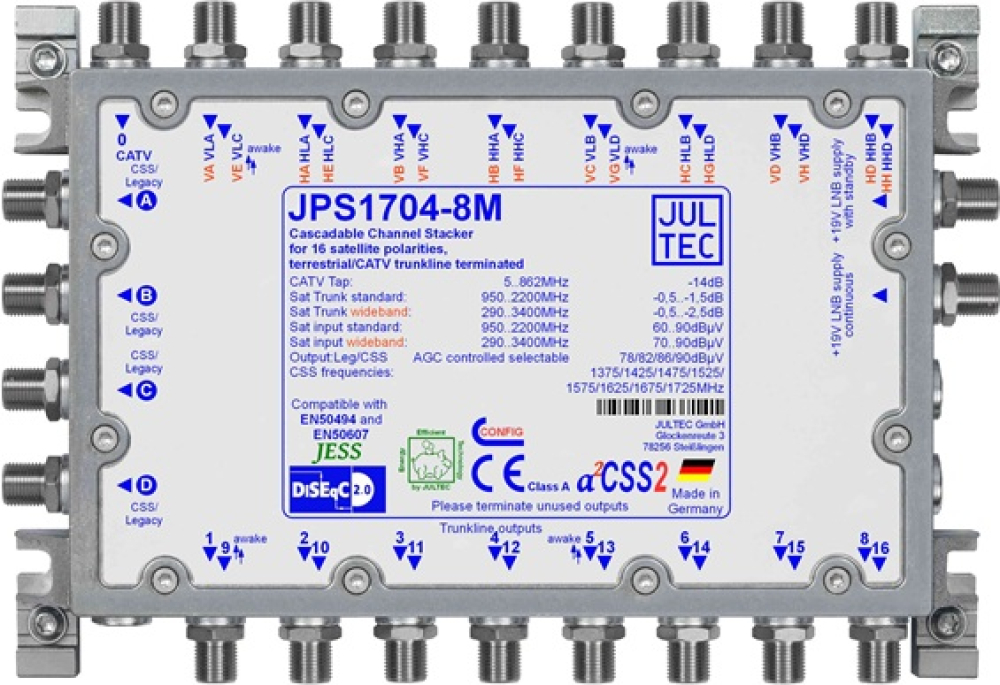

Jultec JPS1704-8M

The Jultec JPS1704-8M is a versatile and reliable Unicable multiswitch designed for the efficient distribution of satellite and terrestrial signals in medium to large installations. Featuring advanced a²CSS2 technology, it supports up to eight independent Unicable outputs, each capable of managing multiple user bands. This multiswitch is ideal for apartment buildings, commercial premises, and multi-dwelling units requiring flexible and scalable signal distribution.

Key Features:

• Satellite Inputs: 17 inputs supporting up to four satellite systems (standard or wideband mode)

• Terrestrial Input: 1 input for DVB-T, DVB-C, or FM signals

• User Outputs: 8 independent Unicable outputs with multiple user bands per output

• Cascade Outputs: Available for system expansion and cascading

• Legacy Support: Compatible with standard satellite receivers (14V/18V/22kHz/DiSEqC)

• Receiver-Powered: Power supplied through connected receivers; external power supply (e.g., JNT19-2000) required for LNB powering

Technical Data:

• Frequency Range:

  • Satellite (Standard): 950–2200 MHz

  • Satellite (Wideband): 290–3000 MHz

  • Terrestrial: 5–862 MHz

• Output Levels:

  • Multiswitch Mode: 90 dBµV

  • Unicable Mode: 92 dBµV

• Maximum Receiver Load:

  • Multiswitch Mode: 110 mA

  • Unicable Mode: 160 mA

• LNB Power Supply: Requires external power via F-connector

• Dimensions: 211 x 144 x 34 mm

• EMC Compliance: CE (EN 60728-2), Class A

Applications:

The JPS1704-8M is perfect for multi-dwelling units, medium-sized residential buildings, and commercial setups that demand reliable, scalable satellite and terrestrial signal distribution to multiple users. Its combination of a large number of inputs and outputs with advanced technology offers a future-proof solution for modern satellite systems.
