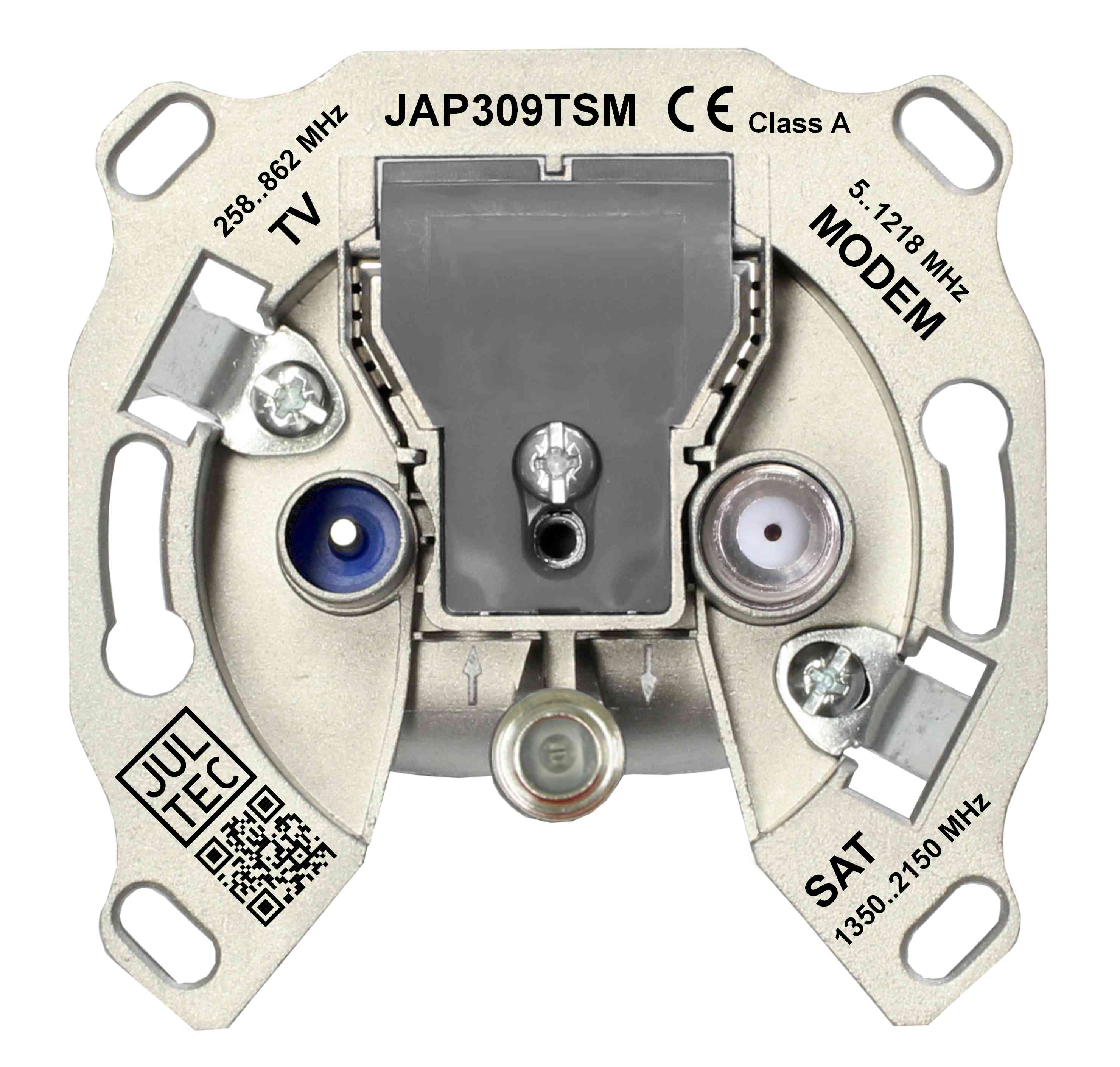

The Jultec JAP309TSM is a highly advanced, programmable antenna outlet for single-cable systems, specially designed for use in Unicable (EN 50494) and JESS (EN 50607) installations. This end socket enables precise control and distribution of satellite, TV, and modem signals over a single cable, making it ideal for modern apartment buildings and complex residential complexes.
Technical Specifications
Frequency Range:
-
SAT: 1,350–2,150 MHz
-
TV: 258–862 MHz
-
Modem: 15–1,218 MHz
Attenuation:
-
SAT: -9 dB
-
TV: -9 dB
-
Modem: -9 dB
Modem Level: up to 120 dBµV (Intermodulation attenuation < 5 dBµV)
DC Pass-through: max. 500 mA
Installation Depth: 20.5 mm
EMC Certification: CE, Class A
Features & Benefits
-
Programming: The outlet analyzes control commands from connected devices in real-time and only allows authorized commands to pass through. This prevents interference from incorrectly configured devices in multi-apartment installations.
-
Protection Function: Non-single-cable control commands such as 18 V continuous voltage or 22 kHz continuous tone are automatically blocked.
-
Compatibility: Supports all common single-cable systems according to EN 50494 and EN 50607, including use with third-party single-cable converters or LNBs.
-
Use Cases: Ideal for deployment in apartment buildings where precise control and distribution of signals are required.
Application Scenarios
-
Apartment Buildings: Enables individual supply of each apartment with satellite, TV, and modem signals over a single cable.
-
Residential Complexes: Provides an efficient solution for signal distribution in large residential complexes with multiple units.
-
Modernization: Perfect for upgrading existing systems to integrate modern single-cable technology.
