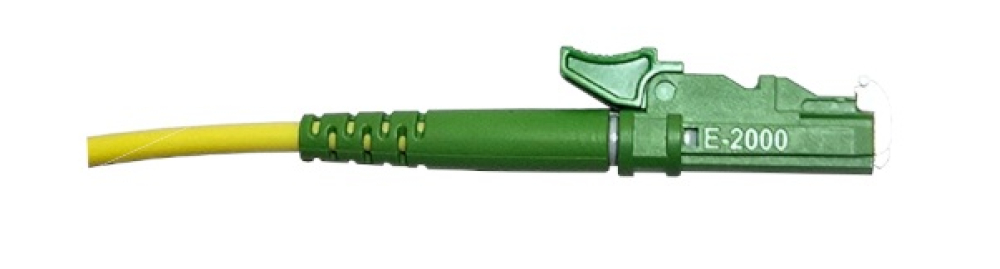

E2000/APC indoor full breakout cable

Highest Precision, Maximum Laser Protection & Robust Full Breakout Design for Critical Infrastructures

The pre-assembled fiber optic indoor full breakout cable with E2000/APC connectors is the premium solution for demanding building backbones, data centers, and telecommunications networks. The E2000 connector protects eyes and ferrules via its integrated metal protective cap, while the full breakout design provides individual mechanical protection for each fiber.


Key Features & Benefits

• Integrated Protective Shutters (Laser & Dust Protection): The spring-loaded metal shutters of the E2000 connector open and close automatically during insertion. They reliably safeguard service personnel against hazardous laser radiation and protect the zirconia ferrule from contamination and damage.

• Excellent Signal Quality via 8° Angled Polish (APC): The precise APC polish guarantees extremely high return loss values (> 65 dB). This minimises signal reflections – ideal for high-bit-rate networks, WDM systems, and sensitive optical measurement setups.

• Full Breakout Design for Maximum Requirements: Each optical fiber runs within its own sub-cable (2.0 mm to 2.8 mm) reinforced with aramid yarn (Kevlar) for strain relief. This enables direct routing of the breakout legs inside server racks or patch panels without requiring additional fan-out kits.

• Ready to Use (Plug & Play): Pre-assembled and 100% tested at the factory – reduces installation effort on site, eliminates time-consuming splicing, and ensures maximum transmission reliability.

• Halogen-Free & Flame-Retardant (LSZH / FRNC): The cable meets the strictest fire safety standards for indoor applications, releasing virtually no smoke and no corrosive gases in the event of a fire.
