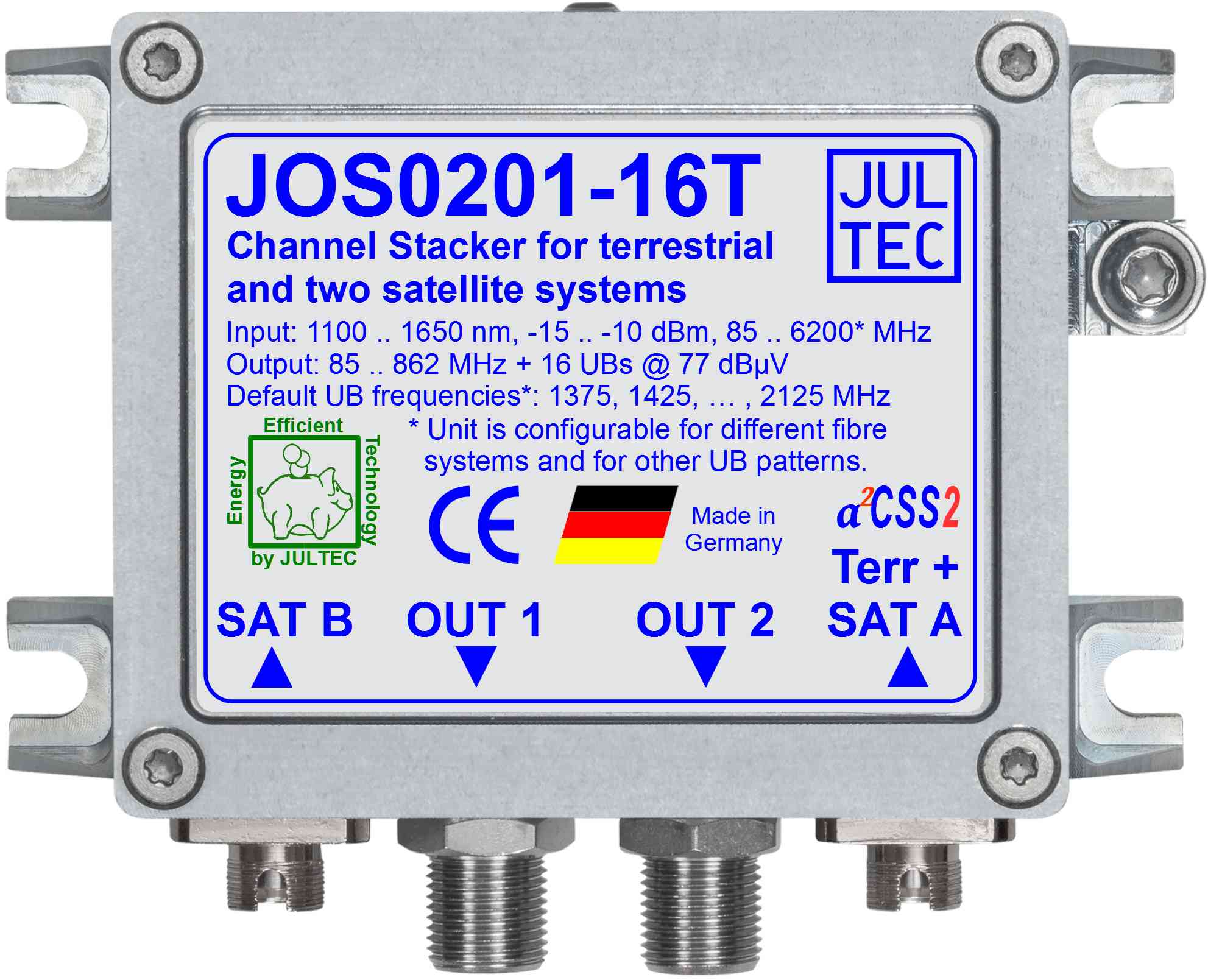

Jultec JOS0201-16T

The Jultec JOS0201-16T is a compact, energy-efficient optical-to-Unicable converter designed for distributing two satellite systems along with terrestrial signals over fiber optic networks. It supports transmission to up to 16 user bands (UBs) through two fiber optic inputs.

Key Features:

• Inputs: 2 x FC/PC fiber optic connectors

• Optical Input Level: -15 to -10 dBm

• Wavelength Range: 1100 to 1650 nm

• Terrestrial Frequency Range: 87 to 862 MHz

• Satellite Frequency Range: 290 to 6200 MHz

• Terrestrial Output Level: Typically 80 dBµV

• Satellite Output Level (AGC): 77 dBµV

• Power Supply: 4.5 to 20 V (via remote powering from connected receivers)

• Current Consumption: Max. 95 mA at 5 V / 290 mA at 14 V

• Dimensions: 90.5 x 73.5 x 21.5 mm

• EMC Shielding: CE (EN 60728-2), Class A

The JOS0201-16T supports a²CSS2 technology, enabling flexible user band configuration and distribution of satellite and terrestrial signals to multiple users or apartments. Ideal for installations requiring two satellite systems and high user capacity with flexible band allocation.
